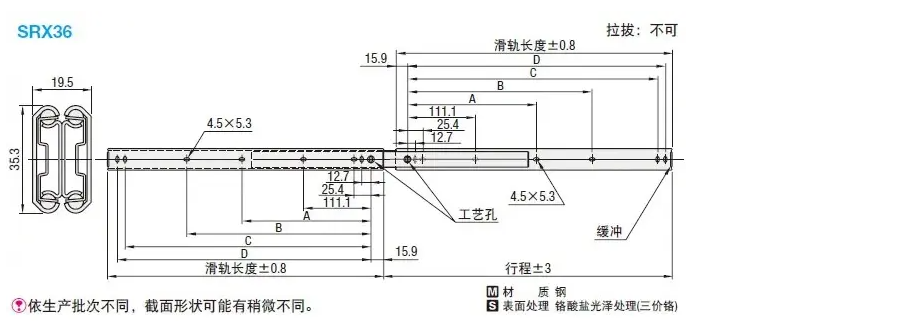

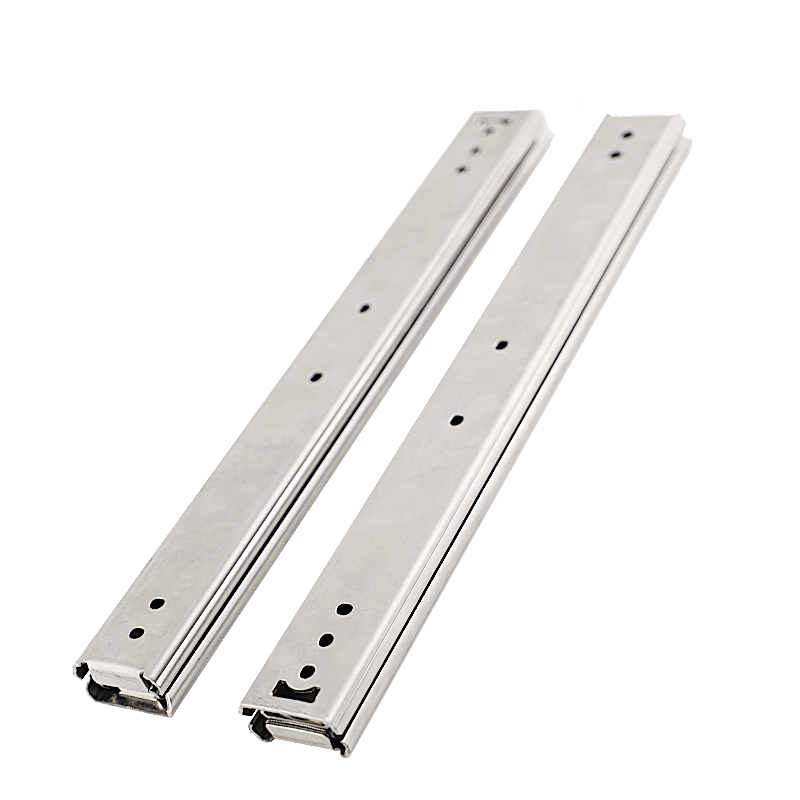

5117.SHJY.SSRX36 30-53.9kg
| 安裝間隙: | 19.5 |
| 高度: | 35.3 |
| 閉合長度: | 305-711mm |
| 延展長度: | 324.2-729.8mm |
| 最大載重: | 30-53.9kg/pair |
| 滑軌節數: | 3 |
| 延展程度: | Over |
| 材質: | Cold rolled steel Q235 |
| 抗震動性: | 4 |
| 產品編號 | 閉合長度 (mm) | 延伸長度 (mm) | 最大載重 (kg) |
| 5117.SHJY.SRX36.Q235.012 | 305 | 324.2 | 51.02 |
| 5117.SHJY.SRX36.Q235.014 | 356 | 375.4 | 53.97 |
| 5117.SHJY.SRX36.Q235.016 | 406 | 424.6 | 51.02 |
| 5117.SHJY.SRX36.Q235.018 | 457 | 475.8 | 47.04 |
| 5117.SHJY.SRX36.Q235.020 | 508 | 527 | 46.02 |
| 5117.SHJY.SRX36.Q235.022 | 559 | 578.2 | 41.02 |
| 5117.SHJY.SRX36.Q235.024 | 610 | 629.4 | 36.02 |
| 5117.SHJY.SRX36.Q235.026 | 660 | 678.6 | 33.97 |
| 5117.SHJY.SRX36.Q235.028 | 711 | 729.8 | 30 |
5117.SHJY.SRX36.Q235.012 length 305mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.012
5117.SHJY.SRX36.Q235.014 length 356mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.014
5117.SHJY.SRX36.Q235.016 length 406mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.016
5117.SHJY.SRX36.Q235.018 length 457mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.018
5117.SHJY.SRX36.Q235.020 length 508mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.020
5117.SHJY.SRX36.Q235.022 length 559mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.022
5117.SHJY.SRX36.Q235.026 length 610mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.026
5117.SHJY.SRX36.Q235.024 length 660mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.024
5117.SHJY.SRX36.Q235.028 length 711mm- 3D STEP FILE -
5117.SHJY.SRX36.Q235.028
