供應全球優質的滑動承載延伸系統

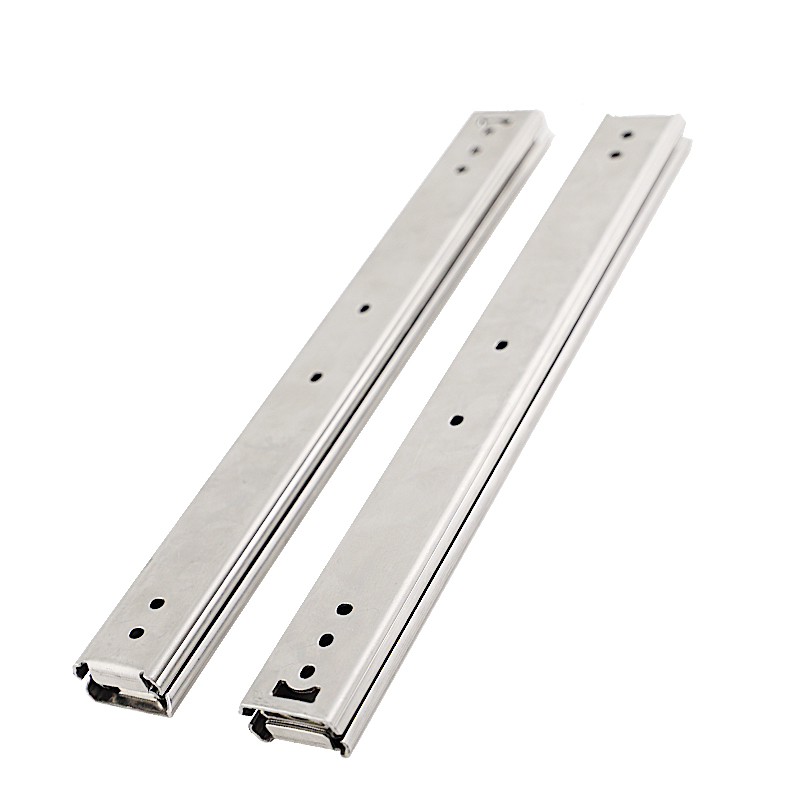

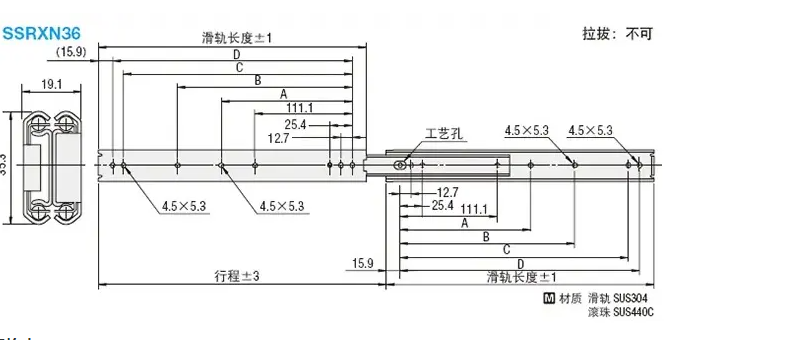

5117.SHJY.SSRXY36 45-60kg
| 安裝間隙: | 19.5mm |

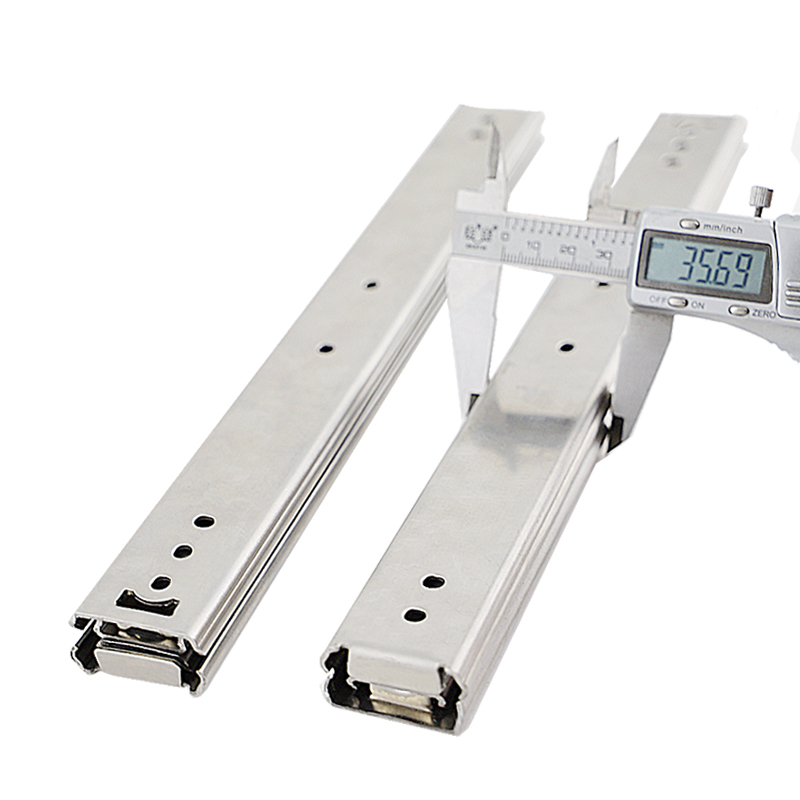

| 高度: | 35.3mm |
| 閉合長度: | 304.8-711.2mm |
| 延展長度: | 327.2-733.2mm |
| 最大載重: | 45-60kg/pair |
| 滑軌節數: | 3 |
| 延展程度: | Over |
| 材質: | SUS304 |
| 抗震動性: | 4 |
| 產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
| 5117.SHJY.SSRXY36.SUS304.012 | 304.8 | 327.2 | 60 |
| 5117.SHJY.SSRXY36.SUS304.014 | 355.6 | 378 | 58.9 |
| 5117.SHJY.SSRXY36.SUS304.016 | 406.4 | 428.4 | 57.04 |
| 5117.SHJY.SSRXY36.SUS304.018 | 457.2 | 479.2 | 56.02 |
| 5117.SHJY.SSRXY36.SUS304.020 | 508 | 530 | 53.97 |
| 5117.SHJY.SSRXY36.SUS304.022 | 558.8 | 580.8 | 51.02 |
| 5117.SHJY.SSRXY36.SUS304.024 | 609.6 | 634.6 | 48.97 |
| 5117.SHJY.SSRXY36.SUS304.026 | 660.4 | 682.4 | 47.04 |
| 5117.SHJY.SSRXY36.SUS304.028 | 711.2 | 733.2 | 45 |
5117.SHJY.SSRXY36.SUS304.012 length 304.8mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.012
5117.SHJY.SSRXY36.SUS304.014 length 355.6mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.014
5117.SHJY.SSRXY36.SUS304.016 length 406.4mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.016
5117.SHJY.SSRXY36.SUS304.018 length 457.2mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.018
5117.SHJY.SSRXY36.SUS304.020 length 508mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.020
5117.SHJY.SSRXY36.SUS304.022 length 550mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.022
5117.SHJY.SSRXY36.SUS304.024 length 609mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.024
5117.SHJY.SSRXY36.SUS304.026 length 660.4mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.026
5117.SHJY.SSRXY36.SUS304.028 length 711.2mm- 3D STEP FILE -
5117.SHJY.SSRXY36.SUS304.028
