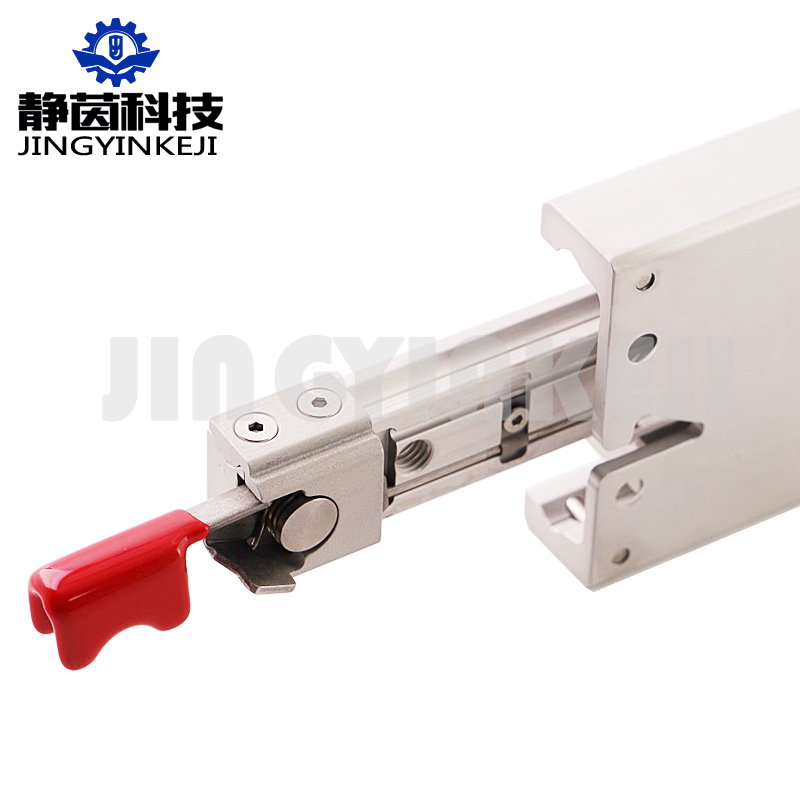

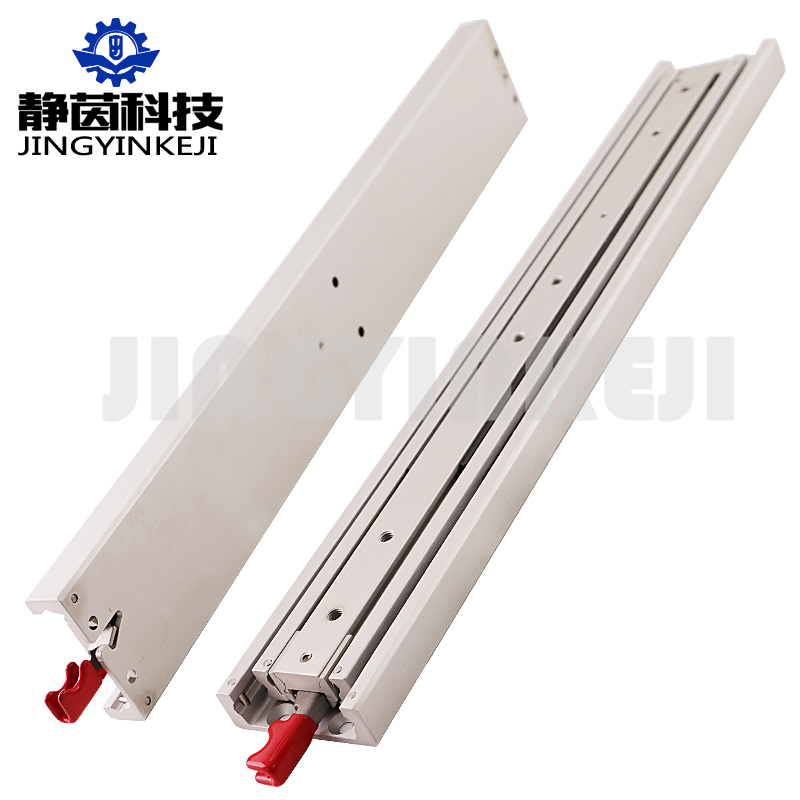

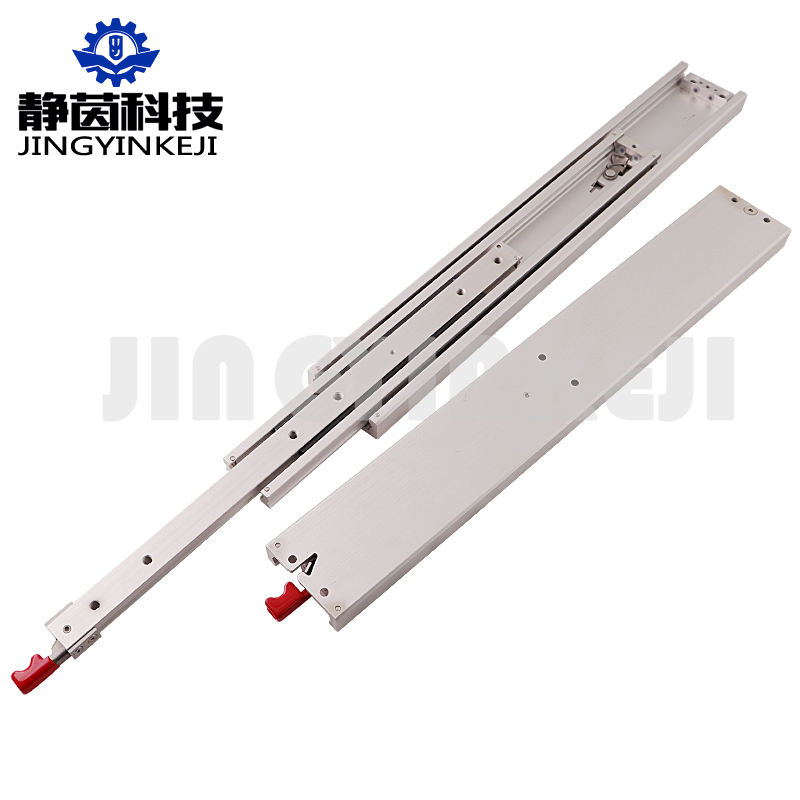

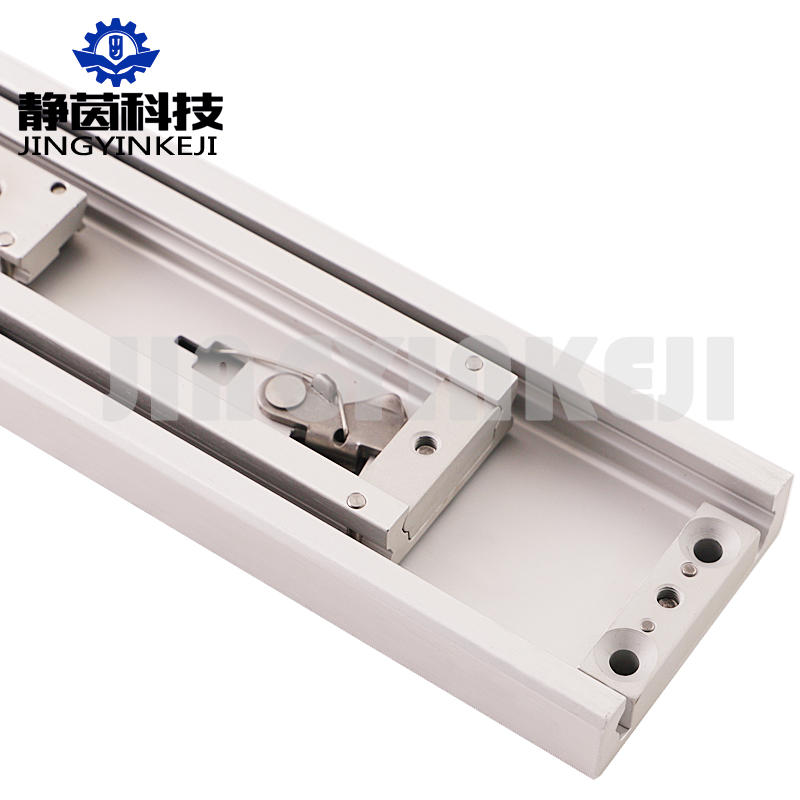

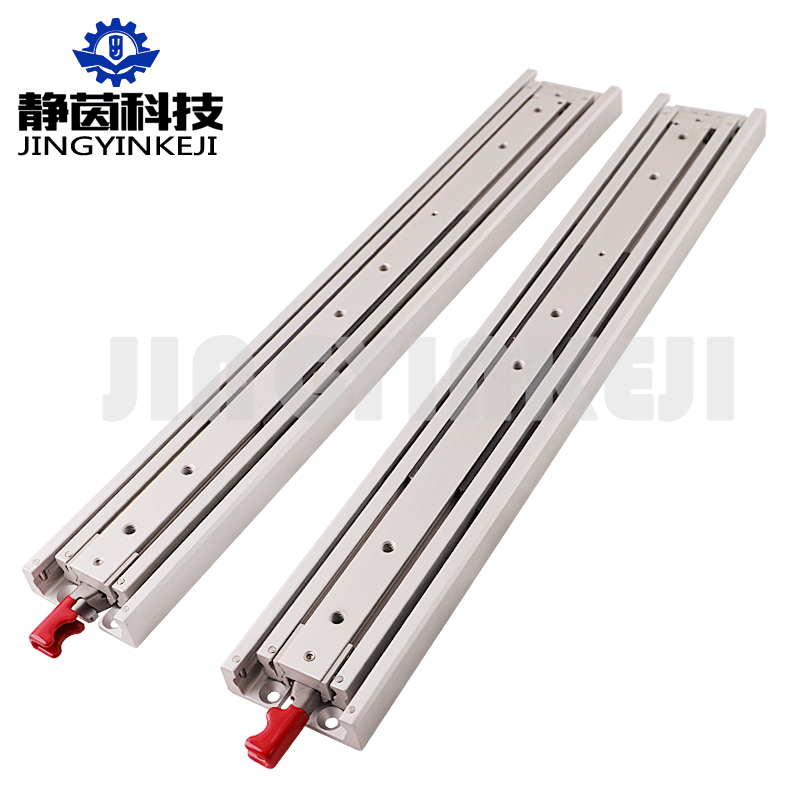

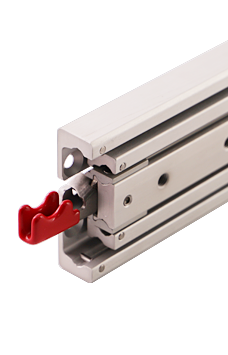

SHJY.5117.8027（90-330kg）帶鎖款

SHJY.5117080（伸縮滑軌）-802703T（90-330kg）全行程 鋁合金7005

此為一系列使用7005鋁合金制成的重型導軌。藉由我們標準化的銑削擠型材工藝，我們能夠供應大部分鋁牌號的導軌。特別是適用于正確選擇材料會影響性能的軍事及航天應用。所有的ADTS鋁合金導軌皆可將材質替換成碳鋼，以便在模塊化設計中為工程師提供更大的彈性。

此為一款高質量、運行平穩、全行程延展的導軌，滾珠軌道經過精密切削并配有預壓。鋼珠、保持架、限位塊皆為不銹鋼材質以達到全面耐腐蝕特性。導軌表面標準為陽極處理，如需其他表面處理請洽詢我們的工程師。

規格細節

安裝間隙: 26.5mm
高度: 80mm
閉合長度: 300-1700mm
延展長度: 300-1700mm
最大載重: 90-330kg/pair
滑軌節數: 3
延展程度: Total
材質: Aluminium alloy
抗震動性: 7

規格圖

適合應用于:

204 242    227 355

產品編號

閉合長度 (mm)

延展長度 (mm)

最大載重 (kg)

5117.SHJY8027.0300300mm300mm250kg
5117.SHJY8027.0350350mm350mm260kg
5117.SHJY8027.0400400mm400mm270kg
5117.SHJY8027.0450450mm450mm280kg
5117.SHJY8027.0500500mm500mm290kg
5117.SHJY8027.0550550mm550mm300kg
5117.SHJY8027.0600600mm600mm320kg
5117.SHJY8027.0650650mm650mm330kg
5117.SHJY8027.0700700mm700mm315kg
5117.SHJY8027.0750750mm750mm300kg
5117.SHJY8027.0800800mm800mm290kg
5117.SHJY8027.0850850mm850mm280kg
5117.SHJY8027.0900900mm900mm270kg
5117.SHJY8027.0950950mm950mm260kg
5117.SHJY8027.10001000mm1000mm250kg
5117.SHJY8027.10501050mm1050mm240kg
5117.SHJY8027.11001100mm1100mm230kg
5117.SHJY8027.11501150mm1150mm220kg
5117.SHJY802712001200mm1200mm210kg
5117.SHJY8027.12501250mm1250mm200kg
5117.SHJY80277.13001300mm1300mm190kg
5117.SHJY8027.13501350mm1350mm180kg
5117.SHJY8027.14001400mm1400mm170kg
5117.SHJY8027.14501450mm1450mm160kg
5117.SHJY8027.15001500mm1500mm150kg
5117.SHJY8027.15501550mm1550mm140kg
5117.SHJY8027.16001600mm1600mm130kg
5117.SHJY8027.16501650mm1650mm110kg
5117.SHJY8027.17001700mm1700mm90kg

下載權限

您必須注冊或登入以下載CAD及其他技術資料。

5117.SHJY.8027--12 length 300mm- 3D STEP FILE -
5117.SHJY.8027--12

5117.SHJY.8027--14 ength 350mm- 3D STEP FILE -
5117.SHJY.8027--14

5117.SHJY.8027--16 length 400mm- 3D STEP FILE -
5117.SHJY.8027--16

5117.SHJY.8027--18 length 450mm- 3D STEP FILE -
5117.SHJY.8027--18

5117.SHJY.8027--20 length 500mm- 3D STEP FILE -
5117.SHJY.8027--20

5117.SHJY.8027--22 length 550mm- 3D STEP FILE -
5117.SHJY.8027--22

5117.SHJY.8027--24 length 600mm- 3D STEP FILE -
5117.SHJY.8027--24

5117.SHJY.8027--26 length 650mm- 3D STEP FILE -
5117.SHJY.8027--26

5117.SHJY.8027--28 length 700mm- 3D STEP FILE -
5117.SHJY.8027--28

5117.SHJY.8027--30 length 750mm- 3D STEP FILE -
5117.SHJY.8027--30

5117.SHJY.8027--32 length 800mm- 3D STEP FILE -
5117.SHJY.8027--32

5117.SHJY.8027--34 length 850mm- 3D STEP FILE -
5117.SHJY.8027--34

5117.SHJY.8027--36 length 900mm- 3D STEP FILE -
5117.SHJY.8027--36

5117.SHJY.8027--38 length 950mm- 3D STEP FILE -
5117.SHJY.8027--38

5117.SHJY.8027--40 length 1000mm- 3D STEP FILE -
5117.SHJY.8027--40

5117.SHJY.8027--42 length 1050mm- 3D STEP FILE -
5117.SHJY.8027--42

5117.SHJY.8027--44 length 1100mm- 3D STEP FILE -
5117.SHJY.8027--44

5117.SHJY.8027--46 length 1150mm- 3D STEP FILE -
5117.SHJY.8027--46

5117.SHJY.8027--48 length 1200mm- 3D STEP FILE -
5117.SHJY.8027--48

5117.SHJY.8027--50 length 1250mm- 3D STEP FILE -
5117.SHJY.8027--50

5117.SHJY.8027--52 length 1300mm- 3D STEP FILE -
5117.SHJY.8027--52

5117.SHJY.8027--54 length 1350mm- 3D STEP FILE -
5117.SHJY.8027--54

5117.SHJY.8027--56 length 1400mm- 3D STEP FILE -
5117.SHJY.8027--56

5117.SHJY.8027--58 length 1450mm- 3D STEP FILE -
5117.SHJY.8027--58

5117.SHJY.8027--60 length 1500mm- 3D STEP FILE -
5117.SHJY.8027--60

5117.SHJY.8027--64 length 1600mm- 3D STEP FILE -
5117.SHJY.8027--64

5117.SHJY.8027--68 length 1700mm- 3D STEP FILE -
5117.SHJY.8027--68
