供應全球優質的滑動承載延伸系統

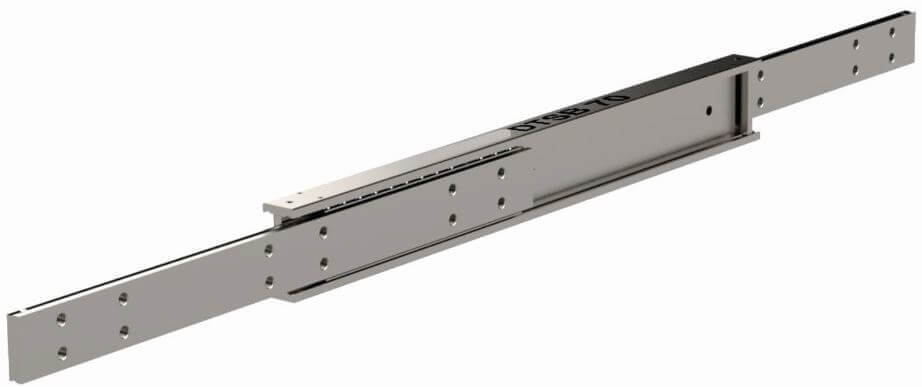

4015.ADTSB70 (105-320kg)

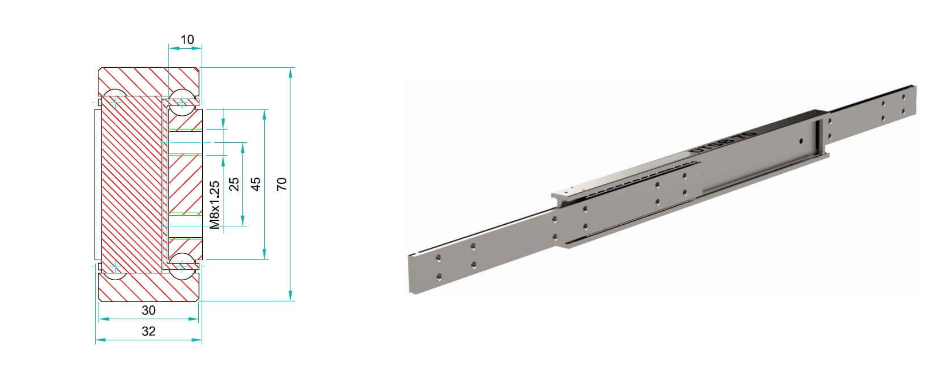

| 安裝間隙: | 32mm |
| 高度: | 70mm |
| 閉合長度: | 200-2000mm |
| 延展長度: | 200-2000mm |
| 最大載重: | 105-320 kg/pair |
| 滑軌節數: | 3 |
| 延展程度: | Bi-Directional |
| 材質: | Anodised aluminium 6082 |
| 抗震動性: | 4 |

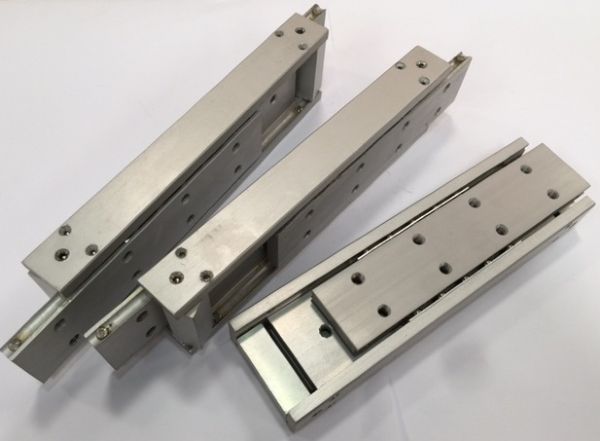

此為一系列使用6082-T6鋁合金及不銹鋼珠制成的重型導軌。藉由我們標準化的銑削擠型材工藝，我們能夠供應大部分鋁牌號的導軌。特別是適用于正確選擇材料會影響性能的軍事及航天應用。
此為一款高質量、運行平穩、全行程延展的導軌，滾珠軌道經過精密切削并配有預壓。導軌表面處理可供選擇。鋼珠、保持架、限位塊皆為不銹鋼材質以達到全面耐腐蝕特性。
重量輕巧的 ADTSB-70 導軌在長度600mm的負載為 330kg。 導軌設計用于雙向全行程，得益于導軌內部擺片機構固定及釋放軌道。唯有第二節軌道擺片被釋放時第一節軌道才能完全延伸。
在投入生產之前，我們不建議在沒有工廠調整和客戶現場測試的情況下，將標準 ADTSB 導軌用于精確的機器人取放物設備或高速穿梭車。導軌運行速度限制在 <0.3m/s。
我們的 Saibo系列 TDB-43LK雙向?qū)к?即是設計用于自動化取物用途，操作速度可達0.8m/s。規格可直接與歐洲他牌置換并更具價格競爭力。
這是一個非常堅固的鋁制導軌，得益于活動的工字鋼有助于減少伸展過程中的扭矩。ADTSB 經常被指定用于海上和空中的國防應用，可與鋼制競品完全互換。導軌表面標準陽極處理，請咨詢我們的工程師以了解其他可用的表面處理。單支 ADTSB-70 每公尺重 5.40kg。
請容許3-4周生產時間，或與我們訂定庫存計劃。
產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
|---|---|---|---|
| 4015.ADTSB70.0200 | 200mm | 200mm | 240kg |
| 4015.ADTSB70.0250 | 250mm | 250mm | 250kg |
| 4015.ADTSB70.0300 | 300mm | 300mm | 260kg |
| 4015.ADTSB70.0350 | 350mm | 350mm | 270kg |
| 4015.ADTSB70.0400 | 400mm | 400mm | 280kg |
| 4015.ADTSB70.0450 | 450mm | 450mm | 290kg |
| 4015.ADTSB70.0500 | 500mm | 500mm | 300kg |
| 4015.ADTSB70.0550 | 550mm | 550mm | 315kg |
| 4015.ADTSB70.0600 | 600mm | 600mm | 330kg |
| 4015.ADTSB70.0650 | 650mm | 650mm | 320kg |
| 4015.ADTSB70.0700 | 700mm | 700mm | 310kg |
| 4015.ADTSB70.0750 | 750mm | 750mm | 300kg |
| 4015.ADTSB70.0800 | 800mm | 800mm | 290kg |
| 4015.ADTSB70.0850 | 850mm | 850mm | 280kg |
| 4015.ADTSB70.0900 | 900mm | 900mm | 270kg |
| 4015.ADTSB70.0950 | 950mm | 950mm | 260kg |
| 4015.ADTSB70.1000 | 1000mm | 1000mm | 250kg |
| 4015.ADTSB70.1050 | 1050mm | 1050mm | 240kg |
| 4015.ADTSB70.1100 | 1100mm | 1100mm | 230kg |
| 4015.ADTSB70.1150 | 1150mm | 1150mm | 220kg |
| 4015.ADTSB70.1200 | 1200mm | 1200mm | 210kg |
| 4015.ADTSB70.1250 | 1250mm | 1250mm | 200kg |
| 4015.ADTSB70.1300 | 1300mm | 1300mm | 190kg |
| 4015.ADTSB70.1350 | 1350mm | 1350mm | 180kg |
| 4015.ADTSB70.1400 | 1400mm | 1400mm | 170kg |
| 4015.ADTSB70.1450 | 1450mm | 1450mm | 160kg |
| 4015.ADTSB70.1500 | 1500mm | 1500mm | 155kg |
| 4015.ADTSB70.1550 | 1550mm | 1550mm | 150kg |
| 4015.ADTSB70.1600 | 1600mm | 1600mm | 145kg |
| 4015.ADTSB70.1650 | 1650mm | 1650mm | 140kg |
| 4015.ADTSB70.1700 | 1700mm | 1700mm | 135kg |
| 4015.ADTSB70.1750 | 1750mm | 1750mm | 130kg |
| 4015.ADTSB70.1800 | 1800mm | 1800mm | 125kg |
| 4015.ADTSB70.1850 | 1850mm | 1850mm | 120kg |
| 4015.ADTSB70.1900 | 1900mm | 1900mm | 115kg |
| 4015.ADTSB70.1950 | 1950mm | 1950mm | 110kg |
| 4015.ADTSB70.2000 | 2000mm | 2000mm | 105kg |
ADTSB70 length 200mm- 3D STEP FILE -
ADTSB-70-200
ADTSB70 length 250mm- 3D STEP FILE -
ADTSB-70-250
ADTSB70 length 300mm- 3D STEP FILE -
ADTSB-70-300
ADTSB70 length 350mm- 3D STEP FILE -
ADTSB-70-350
ADTSB70 length 400mm- 3D STEP FILE -
ADTSB-70-400
ADTSB70 length 450mm- 3D STEP FILE -
ADTSB-70-450
ADTSB70 length 500mm- 3D STEP FILE -
ADTSB-70-500
ADTSB70 length 550mm- 3D STEP FILE -
ADTSB-70-550
ADTSB70 length 600mm- 3D STEP FILE -
ADTSB-70-600
ADTSB70 length 650mm- 3D STEP FILE -
ADTSB-70-650
ADTSB70 length 700mm- 3D STEP FILE -
ADTSB-70-700
ADTSB70 length 750mm- 3D STEP FILE -
ADTSB-70-750
ADTSB70 length 800mm- 3D STEP FILE -
ADTSB-70-800
ADTSB70 length 850mm- 3D STEP FILE -
ADTSB-70-850
ADTSB70 length 900mm- 3D STEP FILE -
ADTSB-70-900
ADTSB70 length 950mm- 3D STEP FILE -
ADTSB-70-950
ADTSB70 length 1000mm- 3D STEP FILE -
ADTSB-70-1000
ADTSB70 length 1050mm- 3D STEP FILE -
ADTSB-70-1050
ADTSB70 length 1100mm- 3D STEP FILE -
ADTSB-70-1100
ADTSB70 length 1150mm- 3D STEP FILE -
ADTSB-70-1150
ADTSB70 length 1200mm- 3D STEP FILE -
ADTSB-70-1200
ADTSB70 length 1250mm- 3D STEP FILE -
ADTSB-70-1250
ADTSB70 length 1300mm- 3D STEP FILE -
ADTSB-70-1300
ADTSB70 length 1350mm- 3D STEP FILE -
ADTSB-70-1350
ADTSB70 length 1400mm- 3D STEP FILE -
ADTSB-70-1400
ADTSB70 length 1450mm- 3D STEP FILE -
ADTSB-70-1450
ADTSB70 length 1500mm- 3D STEP FILE -
ADTSB-70-1500
ADTSB70 length 1550mm- 3D STEP FILE -
ADTSB-70-1550
ADTSB70 length 1600mm- 3D STEP FILE -
ADTSB-70-1600
ADTSB70 length 1650mm- 3D STEP FILE -
ADTSB-70-1650
ADTSB70 length 1700mm- 3D STEP FILE -
ADTSB-70-1700
ADTSB70 length 1750mm- 3D STEP FILE -
ADTSB-70-1750
ADTSB70 length 1800mm- 3D STEP FILE -
ADTSB-70-1800
ADTSB70 length 1850mm- 3D STEP FILE -
ADTSB-70-1850
ADTSB70 length 1900mm- 3D STEP FILE -
ADTSB-70-1900
ADTSB70 length 1950mm- 3D STEP FILE -
ADTSB-70-1950
ADTSB70 length 2000mm- 3D STEP FILE -
ADTSB-70-2000
