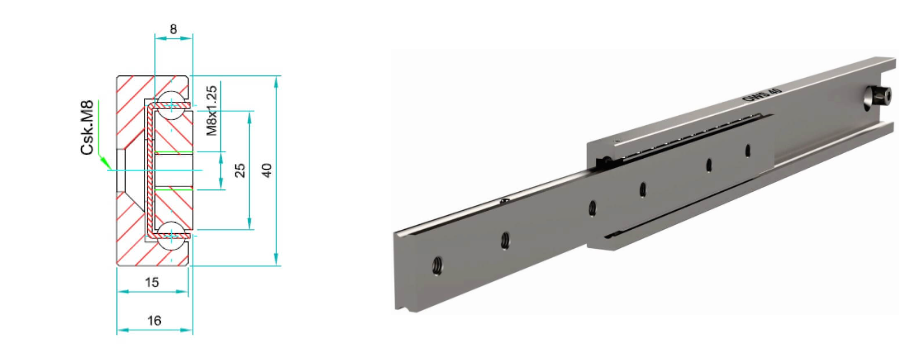

4015.OWS040 (60-360kg)

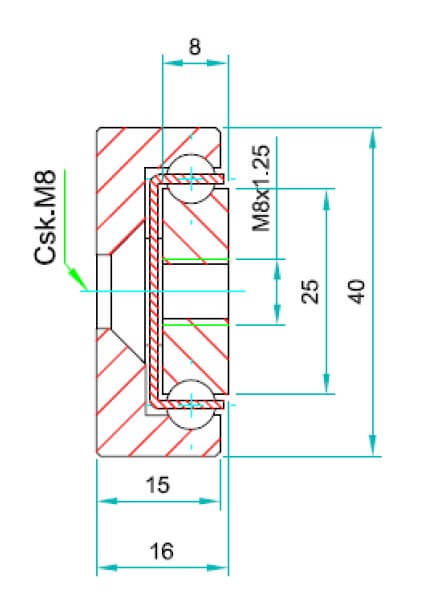

| 安裝間隙: | 16mm |
| 高度: | 40mm |
| 閉合長度: | 150-1600mm |
| 延展長度: | 75-800mm |
| 最大載重: | 60-360 kg/pair |
| 滑軌節數: | 2 |
| 延展程度: | Partial |
| 材質: | C45 steel |
| 抗震動性: | 8 |

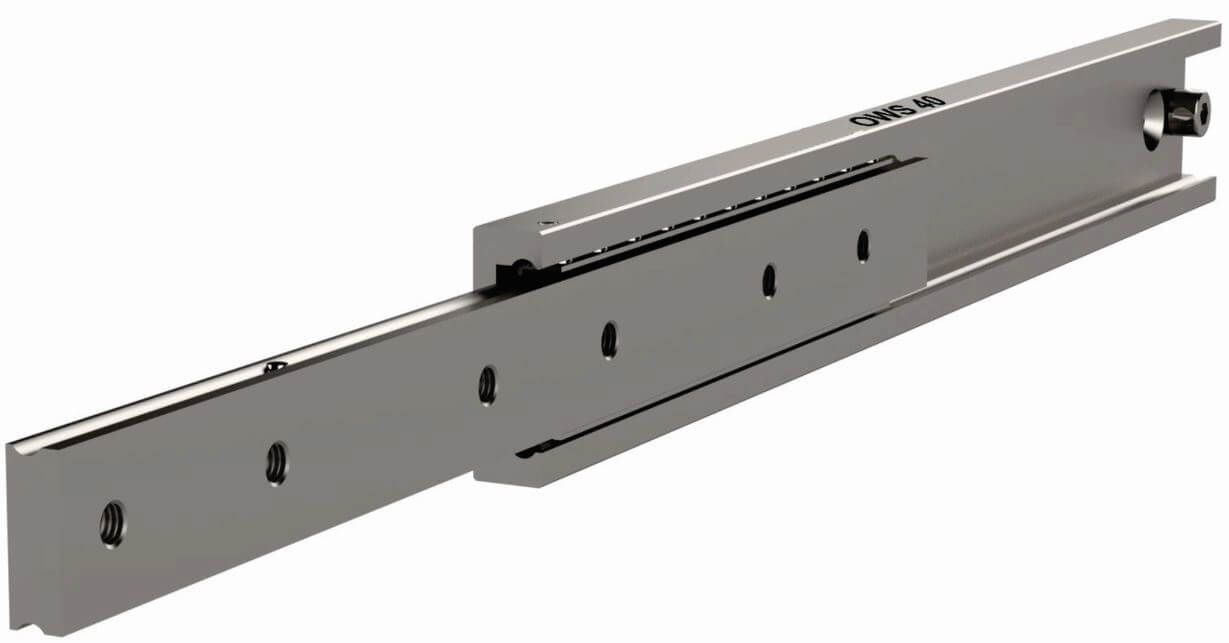

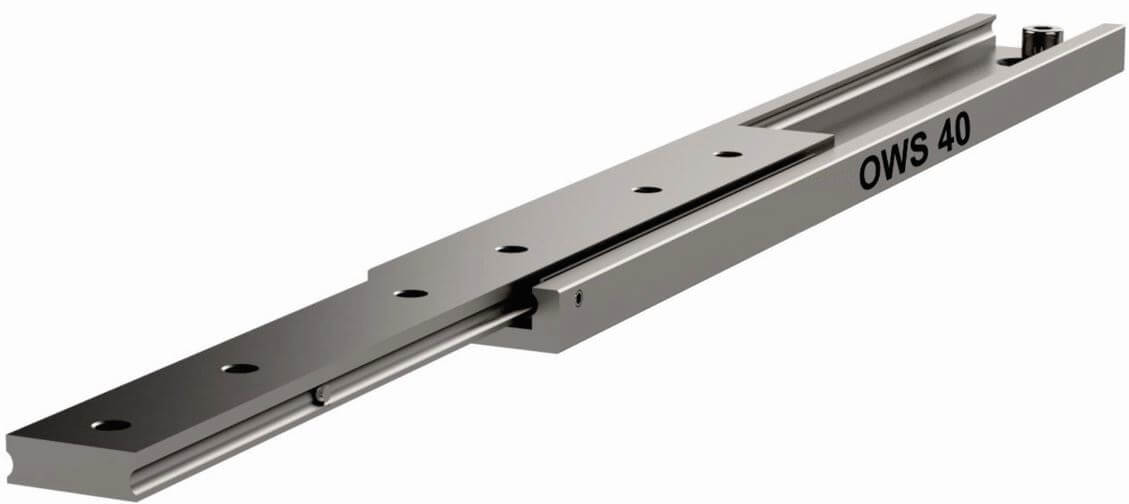

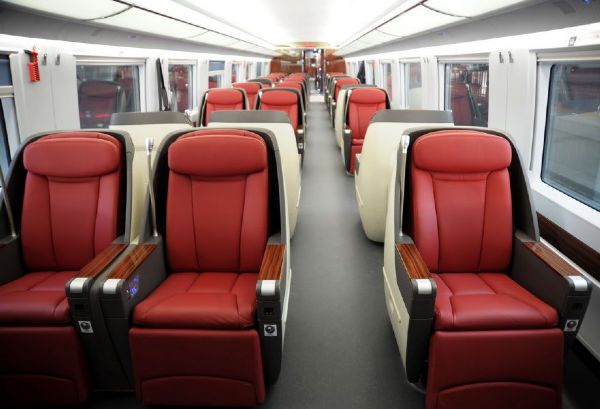

OWS-40是一款強壯的部分延展導軌, 被設計于在限縮空間中發揮最大負載。特別適合使用于火車和軍事座椅系統, 同時也可以套用在會出現扭力的應用。

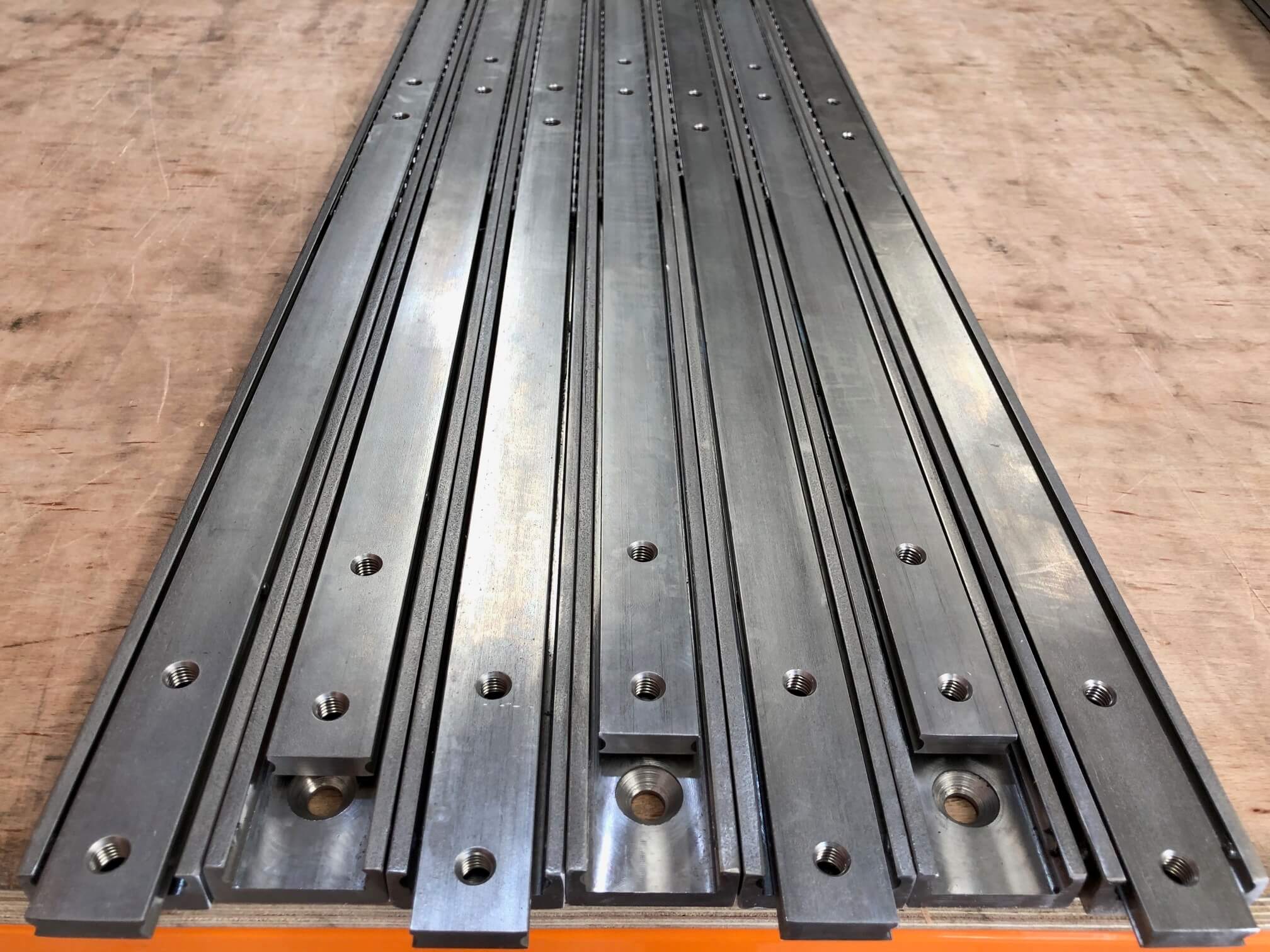

本款導軌行程50%, 載重能力60-360kg/對, 導軌在550mm長可以延展275mm, 載重達到340kg。由兩節冷抽鋼制成, 珠軌經過精密加工，OWS-40導軌在閉合靜置的情況下有相當好的抗震抗沖擊性能，因此適合安裝于車載環境應用。導軌在展開時也能夠提供強大的剛性，使其成為支撐動態負載應用和手動抽拉裝置的絕佳選擇。
OWS-40導軌也可以安裝在短軸上使用(平躺), 但負載能力將會下降60~80%。行程也可以在載重能力些許下降的情況下客制至最高70%。請與我們聯系以選擇此不加價服務。

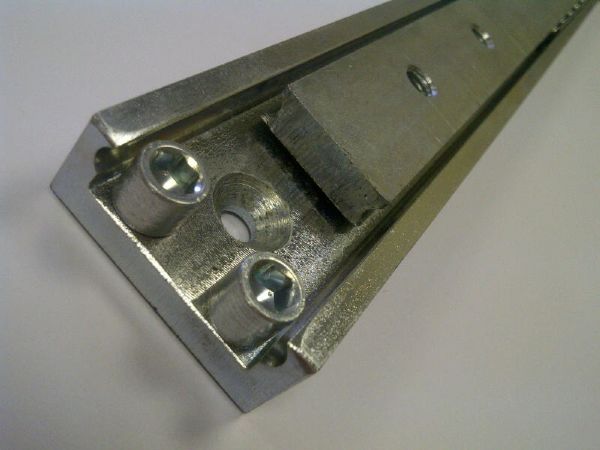

本款導軌由符合EN 10277的冷抽鋼C45E+C制成。珠槽采用雷射切割的鍍鋅板，鋼珠為符合DIN 5401的C85 G100規格。單支導軌每公尺重4.01kg。
導軌為單支報價及出售。負載能力數值則為成對計算(一對兩支導軌)。OWS-40及OWST-40型號導軌為接單生產，請容許3-4周生產時間，或與我們訂定庫存計劃。
產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
|---|---|---|---|
| 4015.OWS040.0150 | 150mm | 75mm | 230kg |
| 4015.OWS040.0200 | 200mm | 100mm | 240kg |
| 4015.OWS040.0250 | 250mm | 125mm | 250kg |
| 4015.OWS040.0300 | 300mm | 150mm | 260kg |
| 4015.OWS040.0350 | 350mm | 175mm | 280kg |
| 4015.OWS040.0400 | 400mm | 200mm | 300kg |
| 4015.OWS040.0450 | 450mm | 225mm | 315kg |
| 4015.OWS040.0500 | 500mm | 250mm | 330kg |
| 4015.OWS040.0550 | 550mm | 275mm | 340kg |
| 4015.OWS040.0600 | 600mm | 300mm | 350kg |
| 4015.OWS040.0650 | 650mm | 325mm | 355kg |
| 4015.OWS040.0700 | 700mm | 350mm | 360kg |
| 4015.OWS040.0750 | 750mm | 375mm | 345kg |
| 4015.OWS040.0800 | 800mm | 400mm | 335kg |
| 4015.OWS040.0850 | 850mm | 425mm | 320kg |
| 4015.OWS040.0900 | 900mm | 450mm | 305kg |
| 4015.OWS040.0950 | 950mm | 475mm | 280kg |
| 4015.OWS040.1000 | 1000mm | 500mm | 265kg |
| 4015.OWS040.1050 | 1050mm | 525mm | 250kg |
| 4015.OWS040.1100 | 1100mm | 550mm | 240kg |
| 4015.OWS040.1150 | 1150mm | 575mm | 230kg |
| 4015.OWS040.1200 | 1200mm | 600mm | 220kg |
| 4015.OWS040.1250 | 1250mm | 625mm | 200kg |
| 4015.OWS040.1300 | 1300mm | 650mm | 180kg |
| 4015.OWS040.1350 | 1350mm | 675mm | 160kg |
| 4015.OWS040.1400 | 1400mm | 700mm | 140kg |
| 4015.OWS040.1450 | 1450mm | 725mm | 120kg |
| 4015.OWS040.1500 | 1500mm | 750mm | 100kg |
| 4015.OWS040.1550 | 1550mm | 775mm | 80kg |
| 4015.OWS040.1600 | 1600mm | 800mm | 60kg |
