4005.CONSLD (180-250kg) Container Red (Pair)
| 安裝間隙: | 19mm |
| 高度: | 76mm |
| 閉合長度: | 203 - 1524mm |
| 延展長度: | 203 - 1524mm |
| 最大載重: | 180-250 kg/pair |
| 滑軌節數: | 3 |
| 延展程度: | Total |
| 材質: | Zinc plated steel |
| 抗震動性: | 5 |

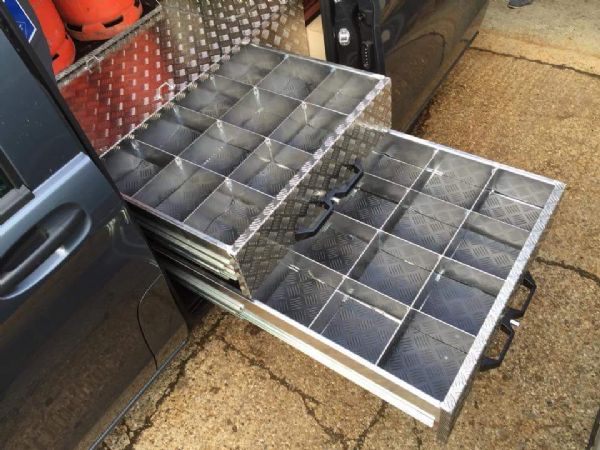

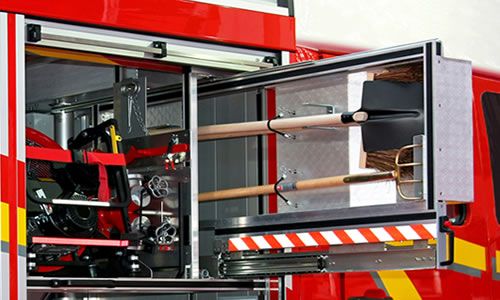

CONSLD為一款冷軋成型的全展滑軌, 具備節省預算的價位?？赏ㄓ迷诖蠖鄶?shù)一般用途, 經常被運用在商用車輛及救護車輛的抽屜系統。

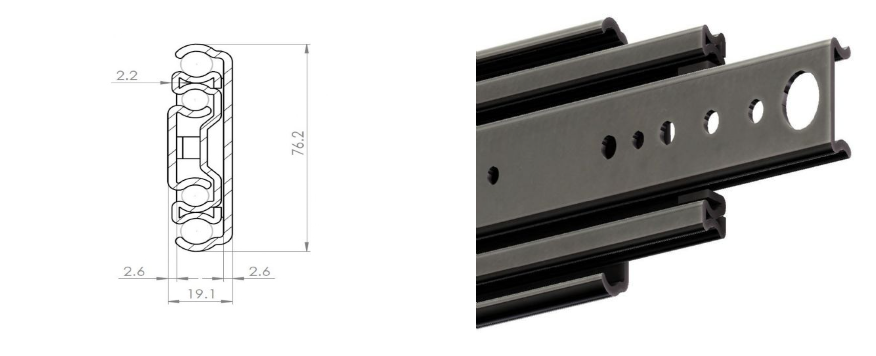

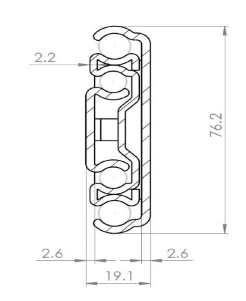

具備標準19.1mm x 76.2mm規格, 滑軌長度從203mm (8") 到 1524mm (60"), 載重能力介于 250kg/對 (550lbs) 到 180kg/對 (396lbs)之間。滑軌被測試到30,000循環。

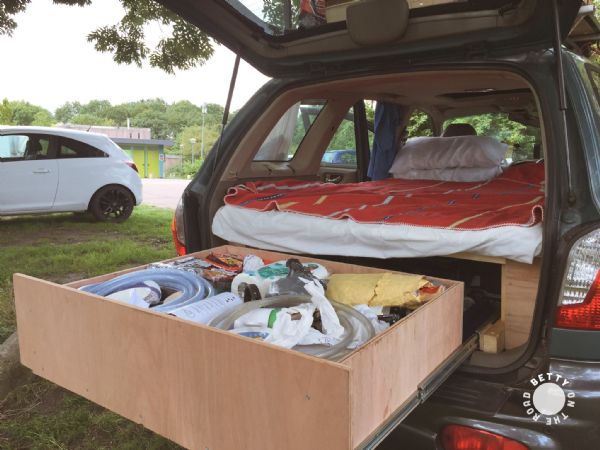

冷軋成型的滑軌適合應用在像是車內收納和收納架的靜態載重環境。如應用牽涉到震動與沖擊環境, 我們建議采用實心結構的Professional或ULTIO滑軌系列。

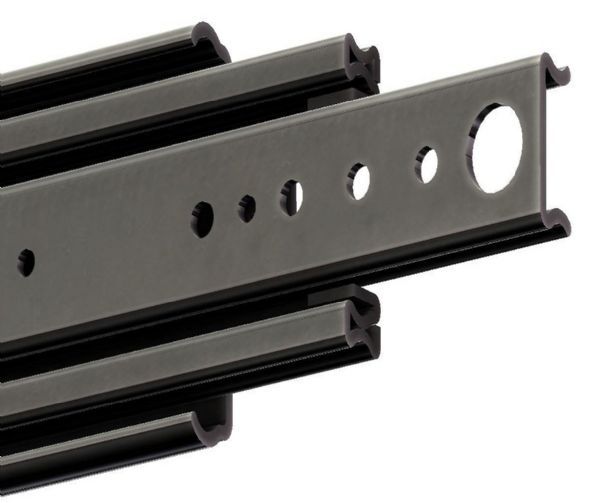

本款滑軌內外板帶有系統孔來彈性配合柜體安裝孔位?；壍陌惭b孔位, 長度及載重皆標注在型錄中。滑軌表面鍍鋅, 內部結構建置有緩沖檔塊, 鋼珠材質為不銹鋼。
載重能力為滑軌安裝在受力主軸之下計算(非平躺安裝)。 滑軌成對出售 (左&右)。JINGYINKEJI可直接取代Accuride 9301。具備更佳載重能力及價格競爭力。
CONSLD各尺寸皆有庫存, 大量采購請洽詢業務。
產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
|---|---|---|---|
| 4005.CONSLD.008 | 203mm | 203mm | 180kg |
| 4005.CONSLD.010 | 254mm | 254mm | 180kg |
| 4005.CONSLD.012 | 304mm | 304mm | 180kg |
| 4005.CONSLD.014 | 356mm | 356mm | 180kg |
| 4005.CONSLD.016 | 406mm | 406mm | 250kg |
| 4005.CONSLD.018 | 457mm | 457mm | 250kg |
| 4005.CONSLD.020 | 508mm | 508mm | 250kg |
| 4005.CONSLD.022 | 559mm | 559mm | 250kg |
| 4005.CONSLD.024 | 610mm | 610mm | 250kg |
| 4005.CONSLD.026 | 660mm | 660mm | 250kg |
| 4005.CONSLD.028 | 711mm | 711mm | 250kg |
| 4005.CONSLD.030 | 762mm | 762mm | 230kg |
| 4005.CONSLD.032 | 812mm | 812mm | 230kg |
| 4005.CONSLD.034 | 864mm | 864mm | 230kg |
| 4005.CONSLD.036 | 914mm | 914mm | 230kg |
| 4005.CONSLD.038 | 965mm | 965mm | 230kg |
| 4005.CONSLD.040 | 1016mm | 1016mm | 230kg |
| 4005.CONSLD.042 | 1067mm | 1067mm | 230kg |
| 4005.CONSLD.044 | 1117mm | 1117mm | 200kg |
| 4005.CONSLD.046 | 1168mm | 1168mm | 200kg |
| 4005.CONSLD.048 | 1219mm | 1219mm | 200kg |
| 4005.CONSLD.050 | 1270mm | 1270mm | 200kg |
| 4005.CONSLD.052 | 1321mm | 1321mm | 200kg |
| 4005.CONSLD.054 | 1372mm | 1372mm | 200kg |
| 4005.CONSLD.056 | 1422mm | 1422mm | 200kg |
| 4005.CONSLD.058 | 1473mm | 1473mm | 200kg |
| 4005.CONSLD.060 | 1524mm | 1524mm | 200kg |
4005.CONSLD - 203mm - 3D STEP File
4005.CONSLD.008
4005.CONSLD - 254mm - 3D STEP File
4005.CONSLD.010
4005.CONSLD - 304mm - 3D STEP File
4005.CONSLD.012
4005.CONSLD - 356mm - 3D STEP File
4005.CONSLD.014
4005.CONSLD - 406mm - 3D STEP File
4005.CONSLD.016
4005.CONSLD - 457mm - 3D STEP File
4005.CONSLD.018
4005.CONSLD - 508mm - 3D STEP File
4005.CONSLD.020
4005.CONSLD - 559mm - 3D STEP File
4005.CONSLD.022
4005.CONSLD - 610mm - 3D STEP File
4005.CONSLD.024
4005.CONSLD - 660mm - 3D STEP File
4005.CONSLD.026
4005.CONSLD - 711mm - 3D STEP File
4005.CONSLD.028
4005.CONSLD - 762mm - 3D STEP File
4005.CONSLD.030
4005.CONSLD - 812mm - 3D STEP File
4005.CONSLD.032
4005.CONSLD - 864mm - 3D STEP File
4005.CONSLD.034
4005.CONSLD - 914mm - 3D STEP File
4005.CONSLD.036
4005.CONSLD - 965mm - 3D STEP File
4005.CONSLD.038
4005.CONSLD - 1016mm - 3D STEP File
4005.CONSLD.040
4005.CONSLD - 1067mm - 3D STEP File
4005.CONSLD.042
4005.CONSLD - 1117mm - 3D STEP File
4005.CONSLD.044
4005.CONSLD - 1168mm - 3D STEP File
4005.CONSLD.046
4005.CONSLD - 1219mm - 3D STEP File
4005.CONSLD.048
4005.CONSLD - 1270mm - 3D STEP File
4005.CONSLD.050
4005.CONSLD - 1321mm - 3D STEP File
4005.CONSLD.052
4005.CONSLD - 1374mm - 3D STEP File
4005.CONSLD.054
4005.CONSLD - 1422mm - 3D STEP File
4005.CONSLD.056
4005.CONSLD - 1473mm - 3D STEP File
4005.CONSLD.058
4005.CONSLD - 1524mm - 3D STEP File
4005.CONSLD.060
